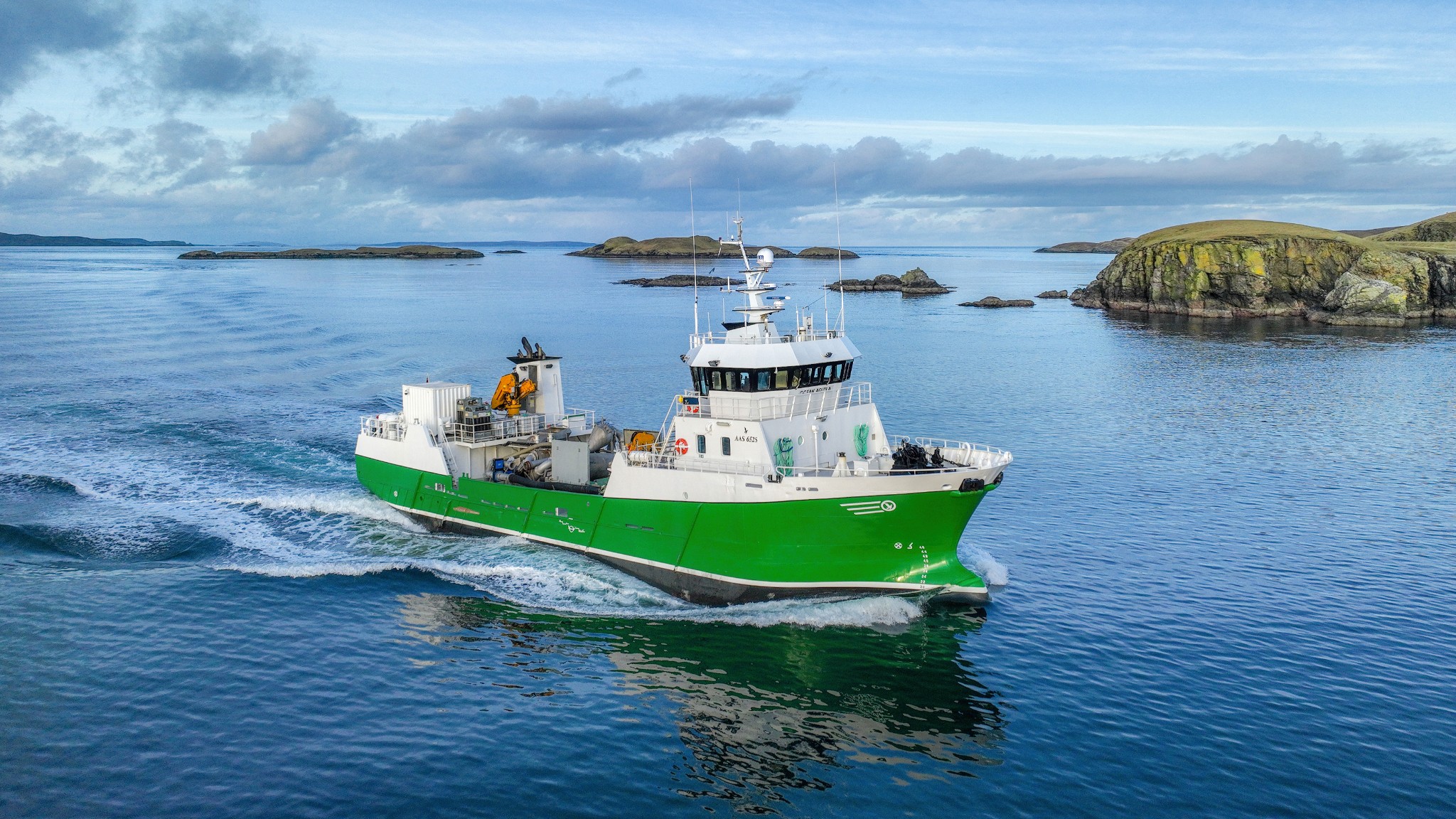

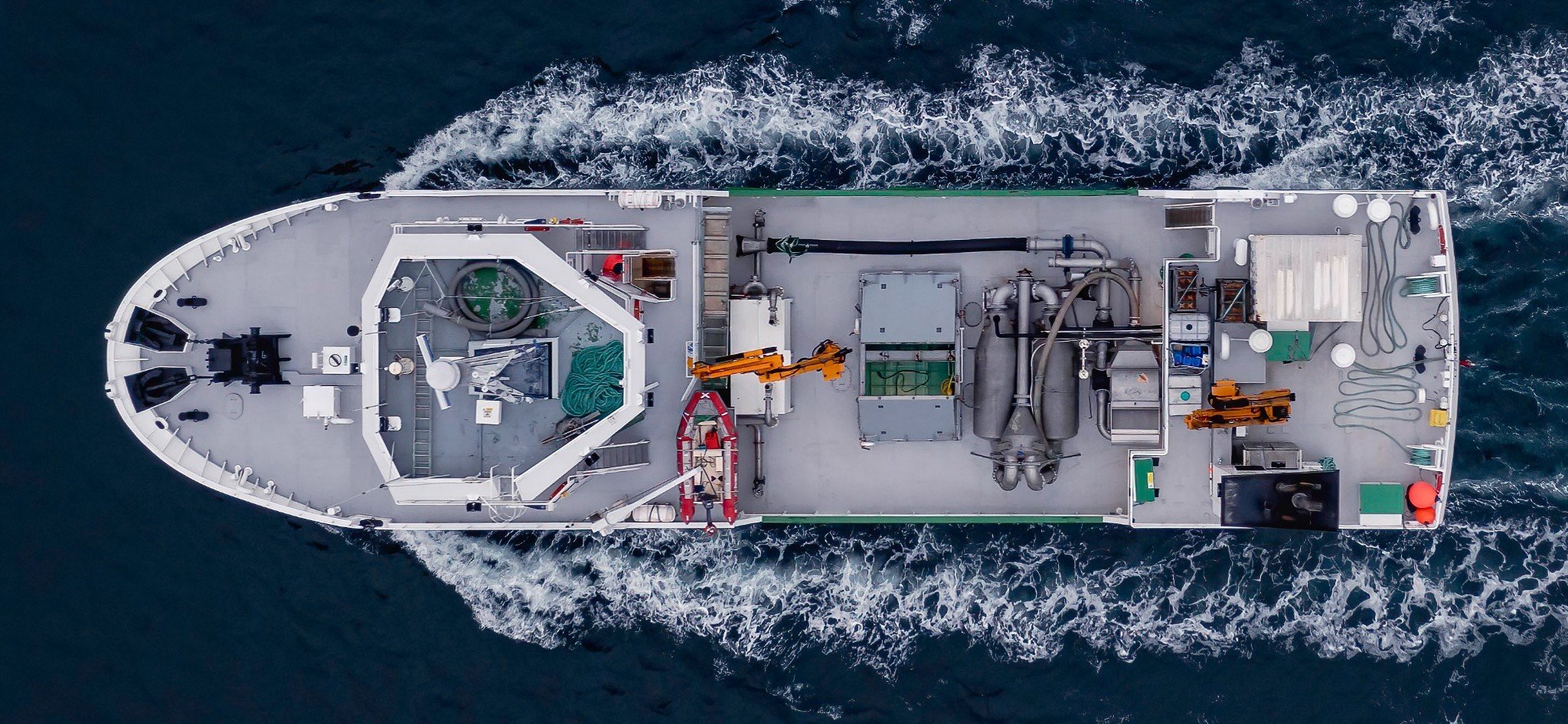

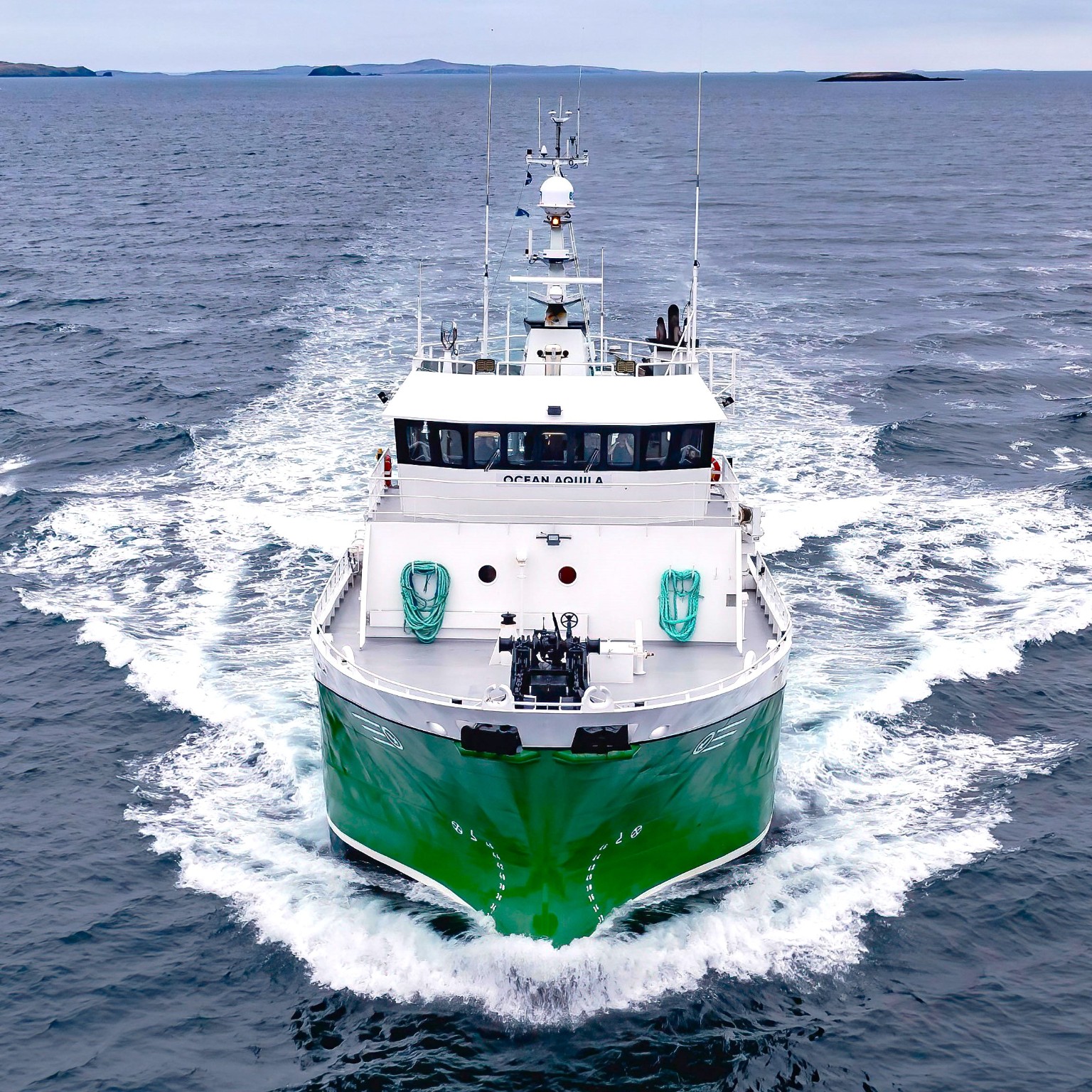

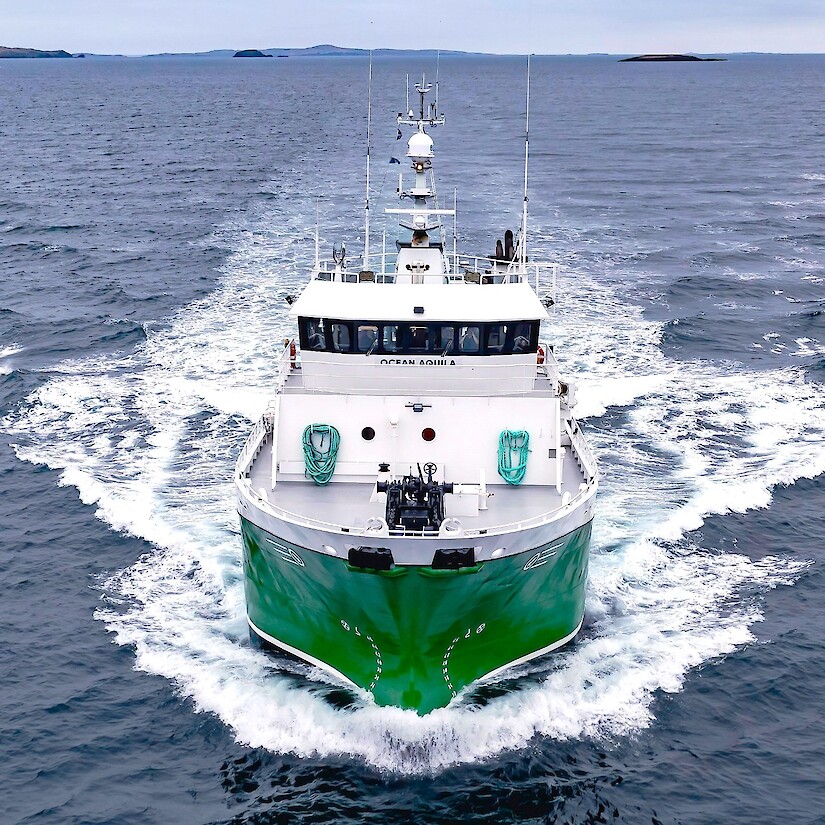

The ‘Ocean Aquila’ is a purpose built Live Fish Carrier.
The vessel has a 650 cbm capacity with 2 wells and has been equipped with moving wall technology allowing for closed chilled harvest and pressurised water flow discharge which allows for the gentle discharge and loading of fish Vessel, Equipped with fish counters,(Harvest and Smolt) fish circulation pumps, RSW, fish movement pumps, 2 x cranes.
Vessel Specification
- Dimensions
Length O.A 40.06m Length P.P 36.42m Beam 10.00m Draft 4.5m Tonnage 497gt Cargo tanks total 650m3 Service speed 11 knots Year of build 2001 - Engines
Main Engine Caterpillar 3512TA, 1000 HP @ 1600 rpm Aux Engines 2x Volvo 597 kVa Harbour set John Deere 110 kVa Gearbox Finnoy gear and propeller systems Thrusters Bow & Stern 250 HP Planned Maintenance System Marad - Capacities
Cargo Hold 650 CBM in two wells Fuel oil 30m3 Fresh water 35m3 Ballast Water 64m3 RSW System 473.000 Kcal/h 1.5 degree/h Vacuum pumps 2 x 5000l Harvest Fish 78 Ton Smolt 32 ton - Cargo Handling
Cargo Hold 2 x 325CBM Loading Pressurized or Vacuum Discharging Pressurized or Vacuum Moving Bulkhead For gentle crowding of fish for discharge Grader Stranda 2 selection Fish Counters FLS/Vaki Crane Main Deck HS Marine 23 t/m Crane poop deck HS Marine 23 t/m Cameras Cargo wells/Engine room/Deck Monitoring System Oxygen/Co2/ozone/PH Cleaning Pressure washer Disinfection Ozone/Aqua-des Logged Monitoring Valves open/closed Treatment System Dosing system for IBC Vacuum pumps Factory discharge and grading CO2 Strippers Closed Transport - Operations/Services
Live Harvest Closed Chilled Grading Can be fitted Smolt transport Closed with CO2 strippers or open Treatments H2O2 or fresh water Site Movements Gentle transfer Splitting over with pressurised loading/unloading Fish counting Onsite
