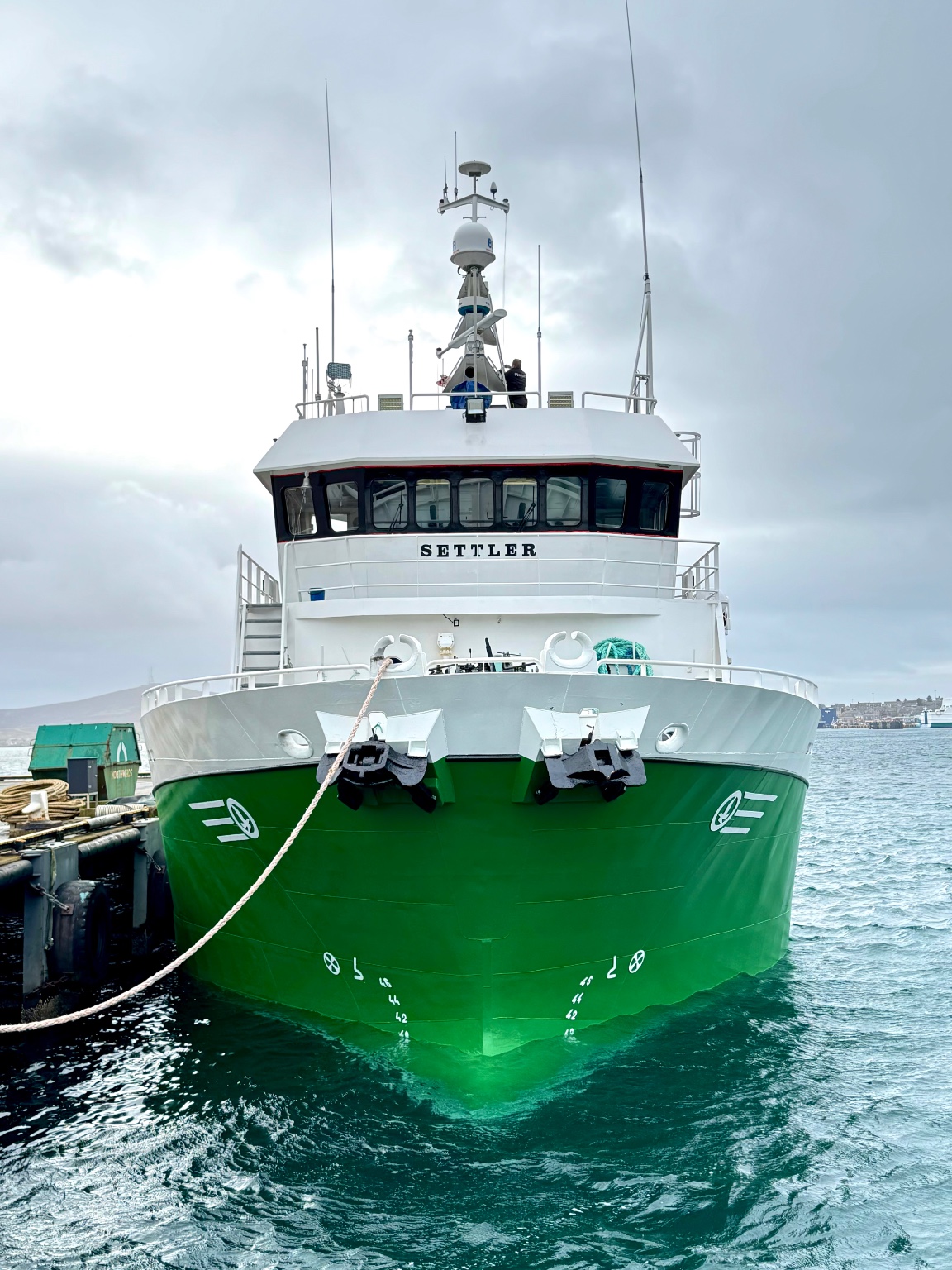

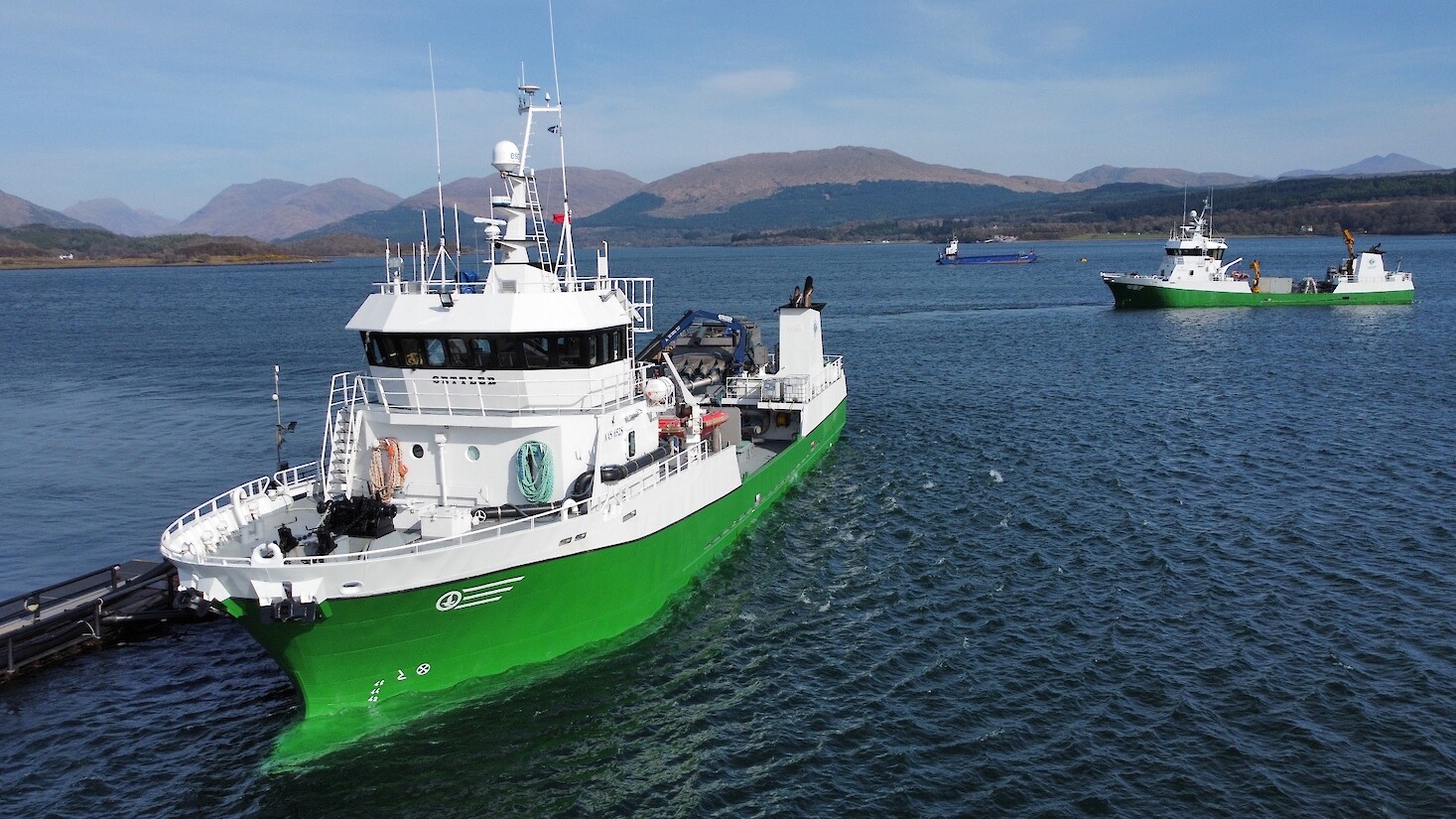

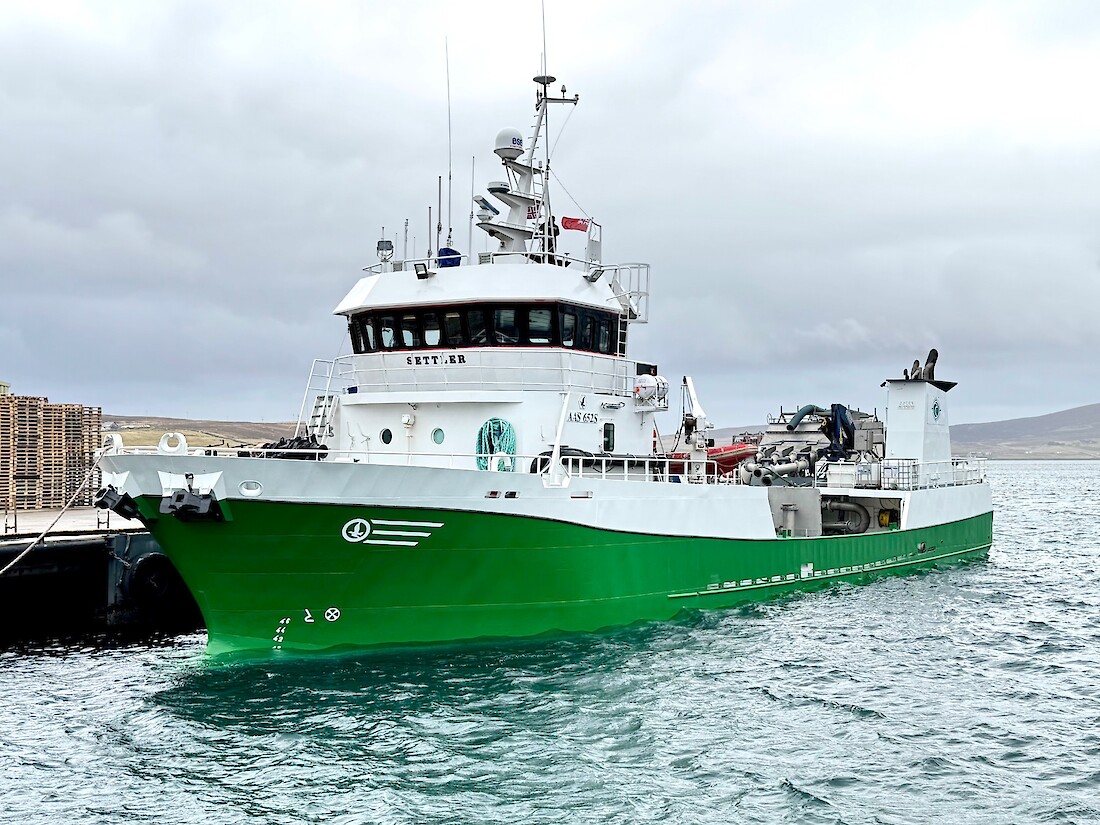

The ‘Settler’ is a purpose built Live Fish Carrier that set the standard for all live fish carriers.
The vessel has a 650 cbm capacity with 2 wells and has been equipped with moving wall technology allowing for closed chilled harvest and pressurised water flow discharge which allows for the gentle discharge of fish, fish counters, fish circulation pumps, fish movement pumps, 2 x cranes.
Length O.A 40.06m Length P.P 36.42m Beam 10.00m Draft 4.7m Tonnage 499gt Cargo Tanks 650 m3 Service speed 12 knots Year of Build July 2002
Main Engine Caterpillar 3512TA, 1000 [email protected] 1600 rpm. Aux Engines 2xCaterpillar 3406TA 400 KVA Harbour set John Deere Marine 80 KVA Harbour set Finnoy gear and propeller systems Thrusters Bow and Stern 250HP Planned Maintenance System Marad
Cargo Hold 650CBM in two wells Fuel oil 40m3 Fresh water 35m3 Ballast water 64m3 Rsw system 473.000 Kcal/h. 1.5 degree/h Vacuum pumps 2 x 4000l Harvest Fish 78 ton Smolt 32 ton
- Cargo Handling
Cargo Hold 2 x 325CBM Loading Pressurized or Vacuum Discharging Pressurized and Vacuum Moving Bulkhead For gentle crowding of fish for discharge Grader Stranda 2 selection Fish Counters Aqua-scan/Vaki Crane Main deck Palfinger 32 t/m Crane poop deck Palfinger 23 t/m Cameras Cargo wells/Engine room/Deck Monitoring System Oxygen/Co2/ozone/PH Cleaning Pressure washer Disinfection Ozone/Aquades Logged Monitoring Valves open/closed Treatment System Dosing system for IBC Vacuum pumps Factory discharge and grading CO2 Strippers Closed Transport
Live Harvest Closed Chilled Grading 2 way Smolt transport Closed with CO2 strippers or open Treatments H2o2 or Fresh water Site Movements Gentle transfer Splitting over with pressurised loading/unloading Fish counting On site
